ECSD1000

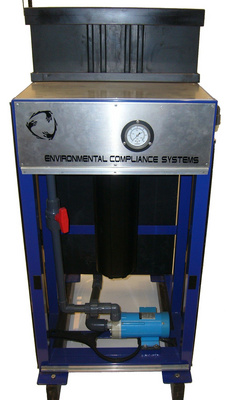

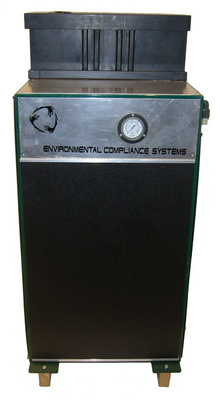

The ECS D1000, 20 micron water recycling system is designed as an economical entry level waste water recycler.  It can be truck, trailer, portable or stationary mounted.  It is It can process or recycle your waste water down to 20 microns.  This is an easy to use plug and use system that has an output of up to 16 gallons of water per a minute.   All you need to do is feed the waste water into the 1500 by a pump, or wet/dry vacuum system, or berm system.  Feed the output processed water back into your clean water tank for recycling, discharge to sewer (depending upon your county codes) or discharge to landscaping for bioremediation if your county will permit.

Used by many professional cleaning contractors for the auto detailing industry, gas stations, retail, loading docks, fast food, driveways, sidewalks, and water washing and other water reuse and recycling projects.

Colors: Red, Blue, Green, Custom on request.

Larger pump optional.

Heavy duty wheels optional.

Construction / Features
Model ECS-D1000
Part number D1000
Automatic on/off switch
Metal powder coated frame construction
Plastic pre-filter chamber
Pre-sediment chamber for larger debris
Heavy duty wheels for easy maneuverability
One filter gauge for maximum filter life
Impact resistant ABS panels (removable)
Prescreening  multi stage micron backwash system
Ground fault  intermittent (GFI) electrical protection
Rotational molded chemical resistant black tank
Gate valve discharge to drying pan or drum
Filter life is greater than >8 continuous hrs
 Less than 5 minute filter changes
Technical Specifications
Tank construction 28 gal. high impact plastic
Powder coated metal frame
High impact plastic sediment chamber
Maximum output 58 liter/minutes (15.4 gpm) 924 GPH
Maximum head height 4.8 meters (15.7 ft.)
Piping schedule 80 PVC
Approximate dry weight 110 lbs./ 50 kg
Approximate size 22" L x 26" W x 45" H








Output Microns
Filter System I
a)         20
Operating voltage / 1.35 amps
120 volts, 60 hz
65w Output
Speed 3200 rpm









1 Product: Page 1 of 1
1
SKU   ECS-D1000
Title   ECS D1000 20 Micron Water Recycling System
Regular Price   $2,995.00
Weight (lbs)   110.00
Shipping Freight   $210.00
