ECS5000

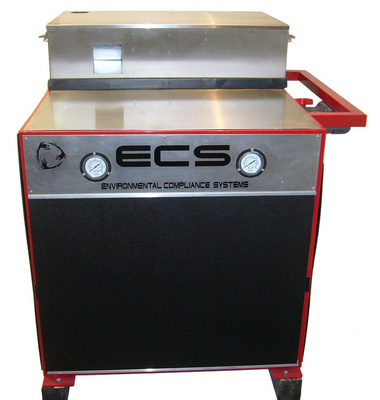

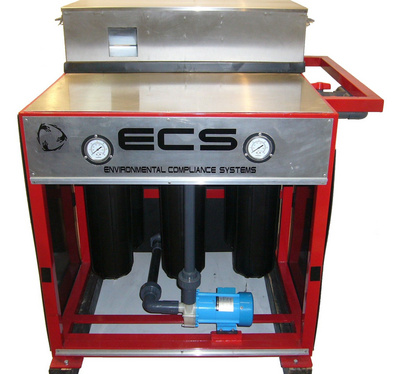

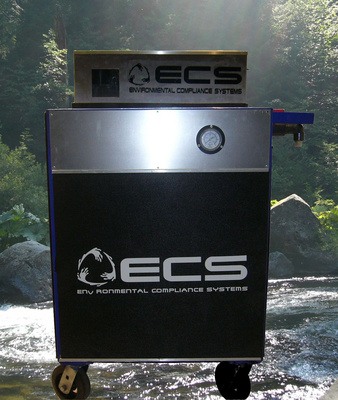

The ECS 5000, 5 micron  water recycling system is designed to be truck, trailer, portable or stationary mounted.  It can process or recycle your waste water down to 5 Microns.  This is an easy to use plug and use system that has an output of up to 19 Gallons of water per a minute.   All you need to do is feed the waste water into the 5000 by a pump, or wet/dry vacuum system.  It can feed multiple pressure/power washer water tanks.



Used by many professional cleaning contractors for cleaning airports, runways, stadiums, malls, parking lots, city streets, sidewalks, truck wash, bus wash, and high water washing and recycling projects.



Colors: Red, Blue, Green, Custom on request.

Larger pump optional.

Heavy duty wheels optional.







Construction / Features
 Model ECS-5000
 Part number 5000
 Automatic on/off switch
 Metal powder coated frame construction
 Stainless steel pre-filter chamber
 Pre-sediment chamber for larger debris
 Heavy duty wheels for easy maneuverability
 Two filter gauges for maximum filter life
 Impact resistant ABS panels (removable)
 Prescreening multi stage micron backwash system
 Ground fault intermittent (GFI) electrical protection
 Rotational molded chemical resistant black  tank
 Gate valve discharge to drying pan or drum
 Filter life is greater than >8 continuous hrs
 Less than 5 minute filter changes




Output Microns

Filter System I  /  Filter System II

a)       50
b)       20
c)         5

Operating voltage / 2.4 amps

120 volts, 60 hz

170w Power Consumption

Speed 3200 rpm

Technical Specifications
 Tank construction 70 gal. high impact plastic
 Powder coated metal frame
 Stainless steel sediment chamber
 Maximum output 72 liter/minutes (19 gpm)
 Maximum head height 8 meters (26.2 ft.)
 Piping schedule 80 PVC
 Approximate dry weight 225 lbs./ 97 kg
 Approximate size 43” L x 41” W x 41” H
