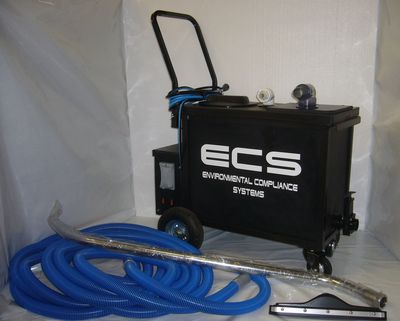

ECS-Vac1

ECS Water Relocator Flood Vacuum

Its powerful vacuum has a 105 inch water lift . Now you can remove the water and quickly return it to service. Used by power washers, fire departments, industry, flood relief agencys, cleaning services, contractors, and hospitals, hotels, pet shops.

Fast Pickup, Automatic Discharge -- The ECS Water Relocator is a very solidly built wet vac that can move up to 1260 gallons per hour.  The discharge sump pump built inside the vac moves up to 21 gallons per minute. This means that the unit never has to be shut down. It constantly picks up water and discharges it so you never have to stop your operations.  The vacuum can also function on "pickup only" mode, and when you're done, roll it outside and flip a switch and it will self-dump. This has enormous value over a conventional vac which requires you to physically lift the unit to dump it, often creating sore backs in the long run for the users.

  • Ideal for picking up waste wash water from pressure washing.
  • Work in longer distance hard to reach locations and pump the water back to your tank or ECS Water Recycler.
  • Can be configured to mount without wheels on your truck or trailer.
  • Use to keep your floors clean and dry in wet environments.  Aquriums/restraunts/parking lots/sidewaks.
  • Proven and used by many of our contractors
  • Made in the USA.

Standard Features:

  •    3 Stage Vacuum Motor
  •    1/3 HP Pump for 1260 GPM
  •    100 CFM per minute
  •    Power Coated Frame
  •    Clean out gate valve
  •    Wheels to work up to 150' or more.
  •    GFI Protection
  •    Automatic Water Pump Out
  •    22 Gallon Tank
  •    4 Gallon Trash Sediment Pre-strainer
  •    1 Minute filter change
  •    Can lift over 100 inches
  •    Tested to pump over 100 ft.
  •    Can attach or detach to some ECS Recyclers
  •    20 ft. power cord
  •    50' 1.25" suction hose w/ 1.5" culping
  •    Industrial Wand
  •    Industrial Floor Squegee
  •    Clear intake for fast observation
  •    Automatic off if pump becomes clogged
  •    Unions on pump clear debris if pump is clogged



Optional:

  • Pumps up to 5160 Gallons per hour
  • Dual 3 stage vacuum motors
  • Longer suction hose
  • Larger out put hoses
  • Stainless steel frame
  • Custom sizes
  • Larger motors

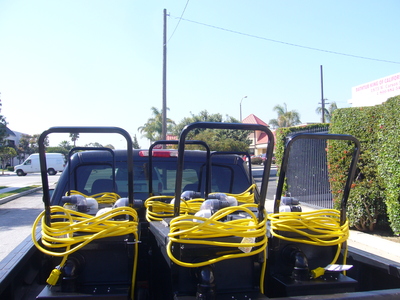

ECS Vac 1's ready for a contractors

multi level parking garage pressure

washing and water recycling.

Other Benefits:

Fast Pickup, Automatic Discharge -- The Water Relocator is a very solidly built wet vacs that can move up to 1260 gallons per hour. The vacuum is rated to recover up to 18 gallons per minute. The discharge sump pump built inside the vac moves 21 gallons per minute. This means that the unit never has to be shut down. It constantly picks up water and discharges it so you never have to stop your operations. Most industrial users say that a 3 hour water pickup job with conventional wet vacs can be done in 30 minutes with the Water Relocator. The vac can also function on "pickup only" mode, and when you're done, roll it outside and flip a switch and it will self-dump. This has enormous value over a conventional vac which requires you to physically lift the unit to dump it, often creating sore backs in the long run for the users.



Powerful Suction - The Power of an Extractor. The Water Relocator features a 105 inch water lift, which is nearly unparalleled among other vacuums. This means the it has enough power to lift water up a column of 105 inches above ground level.  Provided is a 50 foot 1.25" suction hose.



Strainer -- Inside the vac is a strainer that catches any debris over 5cm in size. The strainer can be easily dumped by removing the lid of the vac and pulling the strainer out. The good thing about this is that you can operate around dirty parking lots, trains, construction sites, sewage, storm water or areas after fires and not be worried about picking up debris and having it jam the system. Fire department users, hospitals,  report no problem using this vacuum around the heavy debris after a fire or contaminated spill.



Overflow Protection -- The vac is "smart" in that it has a built in sensor that will automatically stop any water pickup if your pump becomes clogged. For example, if your  employees forget to put in the strainer, or clean the vacuum after prior uses and the pump becomes clogged just remove the quick connect union, clean the bottom of the pump then, once sufficient water was discharged, it would automatically start to suction again.



Injury Prevention -- Since the Water Relocator has automatic dumping of water at the flip of a switch, users never have to physically pick up the vac to dump it. This helps to prevent back injuries since water is very heavy.



Better Customer Service -- Many fire, flood relief,  hospitals, pressure washers face the dilemma of needing to return to service for other  equipment maintainence, job site problems, multi tasking, emergency calls, yet also the need to stay on the scene of a broken sewer water pipe or activated sprinkler for hours to perform water pickup after an incident. The ECS VAC1 is a lifesaver and timesaver! What used to take hours with a conventional wet vac or backpack vac now can be done in a much shorter time. Many fire departments report a typical 3 hour water removal call using conventional wet vacs can be completed in 30 minutes with the Water Relocator.  One hospital has claimed that it has saved over a million dollars of pharmacuticals due to a broken sewer pipe.  One environmental company has a fleet of over 60 units operating daily for picking up industrial waste water.



Powerful Discharge -- If you use a non-collapsible  commercial 3/4" discharge hose, the unit can discharge up to 300 feet. Many fir users connect  1 inch, 1.25 or 1.50 inch hose to the discharge port (a special coupler is needed for these users). Because a standard garden hose is collapsible and generates more friction loss, the discharge is limited to 100 feet. However, in most cases, users only need 25 feet of discharge hose to reach a drain, water tank oe ECS Water Recycler.  The sump pump inside the vac is powerful enough to pump the water up two levels (up to 21feet vertically), for example, from a basement to the outside or differnt floor of the parking lots.  If you desire, the unit can work in a pickup only mode for up to 17 gallons of water. When the canister if full, simply wheel it outside or to a drain and flip the dump switch and the vac will dump itself.



Durability -- The Water Relocator is USA engineered.  Contractor, industry, and fire service users like its durability and power. The Water Relocator comes with a 6 month parts and labor warranty.

  • Vacuum

  • --1.6 HP (8.5 peak) three stage self cooling bypass motor (offers high suction performance with little chance of ever burning up)

  • --140 cfm airflow

  • --105 inches static water lift

  • --14 gpm suction volume, 21 gpm discharge volume

  • --19 gallon tank size, rotational molded.

  • --93 lbs.

  • --20 foot cord with GFI protection

  • --33"l x 17"w x 38"h Integrated ground fault interrupter

  • --Just attach a 3/4" discharge hose

  • --Tiltable tank with gate valve for easy dumping

  • --Industrial squeegee floor nozzle

  • --Metal two piece chrome wand

  • --Stainless steel Metal filter strainer  w/ nylon filter bag strainer on intake

  • --Industrial Air Wheels with optional flat less tires

  • --3 stage motor start technology (increases life of motor)

  • --Overflow protection - vacuum will not overflow

  • --Can be used in "pick up" only mode, then roll outside, flip switch, and it self dumps

  • --6 months parts and service warranty

  • Internal Water Pump

  • --1/3 HP motor

  • --21 gpm discharge volume

  • --Water overflow protection

  • Optional Accessories

  • The Water Relocator does not come with discharge hose, however  an optional quick connection for the discharge port so you can attach  differnt size hose onto it easily. Discharge hose can be purchased in 25, 50 and 100 foot sections. Suction hose can be purchased to extend the length up to 100 feet total.
