ECS5000LP

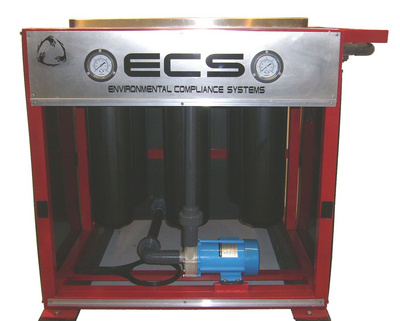

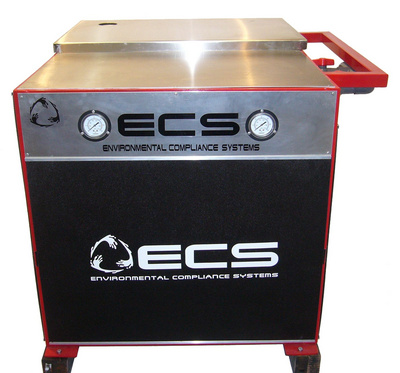

The ECS 5000LP, 5 micron low profile water recycling system is designed to be truck, trailer, portable or stationary mounted.  It can process or recycle your waste water down to 5 microns.  This is an easy to use plug and use system that has an output of up to 19 Gallons of water per a minute.   All you need to do is feed the waste water into the 5000 by a pump, or wet/dry vacuum system.  It can feed multiple pressure/power washer water tanks.

Used by many professional cleaning contractors for cleaning airports, runways, stadiums, malls, parking lots, city streets, sidewalks, truck wash, bus wash, and high water washing and recycling projects.

Colors: Red, Blue, Green, Custom on request.

Larger pump optional.

Heavy duty wheels optional.



Construction / Features
Model ECS-5000LP
Part number 5000LP
Automatic on/off switch
Metal powder coated frame construction
Stainless steel pre-filter chamber
Pre-sediment chamber for larger debris
Heavy duty wheels for easy maneuverability
Two filter gauges for maximum filter life
Impact resistant ABS panels (removable)
Prescreening  multi stage micron backwash system
Ground fault  intermittent (GFI) electrical protection
Rotational molded chemical resistant black tank
Gate valve discharge to drying pan or drum
Filter life is greater than >8 continuous hrs
Less than 5 minute filter changes



Technical Specifications
Tank construction 70 gal. high impact plastic
Powder coated metal frame
Stainless steel sediment chamber
Maximum output 72 liter/minutes (19 gpm)
Maximum head height 8 meters (26.2 ft.)
Piping schedule 80 PVC
Approximate dry weight 215 lbs./ 97 kg
Approximate size 44" L x 41"W x 34"H





Output Microns

Filter System I

Filter System II

a)    50

a)    50

b)    20

b)    20

c)     5

c)     5

Operating voltage / 2.4 amps
120 volts, 60 hz

170w Power Consumption

Speed 3200 rpm
