ECS3500

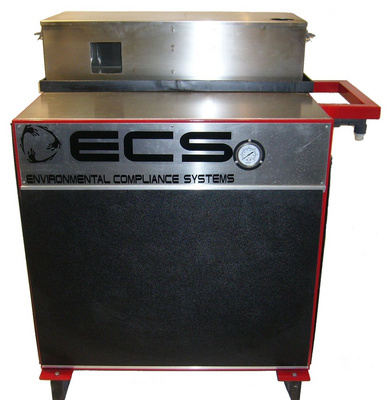

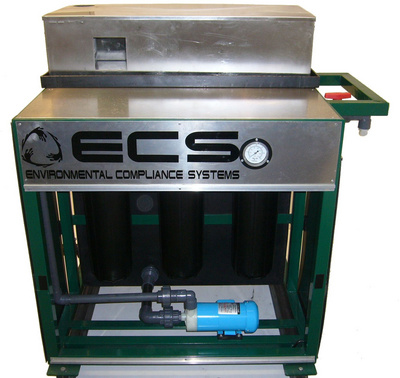

The ECS 3500 5 micron water recycling system is designed to be truck, trailer, portable or stationary mounted.  It can process or recycle your waste water down to 5 microns.  This is an easy to use plug and use system that has an output of up to 19 Gallons of water per a minute.  All you need to do is feed the waste water into the 3500 by a pump, or wet/dry vacuum system.  It can feed multiple pressure/power washer water tanks.

Used by many professional cleaning contractors for cleaning airports, runways, stadiums, malls, parking lots, city streets, sidewalks, truck wash, bus wash, and high water washing and recycling projects.

Colors: Red, Blue, Green, Custom on request.

Larger pump optional.

Heavy duty wheels optional.



Construction / Features
Model ECS-3500
Part number 3500
Automatic on/off switch
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Metal powder coated frame construction
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Stainless steel pre-filter chamber
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Pre-sediment chamber for larger debris
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Heavy duty wheels for easy maneuverability
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Two filter gauges for maximum filter life
Impact resistant ABS panels (removable)
Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Ã���Ã��Ã�¯Ã���Ã��Ã�¿Ã���Ã��Ã�½Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Prescreening  multi stage micron backwash system
Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Ã���Ã��Ã�¯Ã���Ã��Ã�¿Ã���Ã��Ã�½Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Ground fault  intermittent (GFI) electrical protection
Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Ã���Ã��Ã�¯Ã���Ã��Ã�¿Ã���Ã��Ã�½Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Rotational molded chemical resistant black  tank
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢Gate valve discharge to drying pan or drum
Filter life is greater than >8 continuous hrs

����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢

Less than 5 minute filter changes



Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢Ã���Ã��Ã�¯Ã���Ã��Ã�¿Ã���Ã��Ã�½Ã���Ã�¯Ã�¿Ã�½Ã���Ã��Ã�¢
����¯�¿�½������¢������¯������¿������½����¯�¿�½������¢

Technical Specifications

Tank construction 28 gal. high

impact plastic

Powder coated metal frame
Stainless steel sediment chamber

Maximum output 62 liter/minutes

(16.4 gpm)

982.7 GPH

Maximum head height 4.8

meters (15.7 ft.)

Piping schedule 80 PVC

Approximate dry weight

145 lbs./ 97 kg

Approximate size

31” L x 34” W x 41” H



Output Microns

Filter System I

a)       50
b)       20
c)         5

Operating voltage / 1.2 amps

120 volts, 60 hz

55w Power Consumption

Speed 3400 rpm
